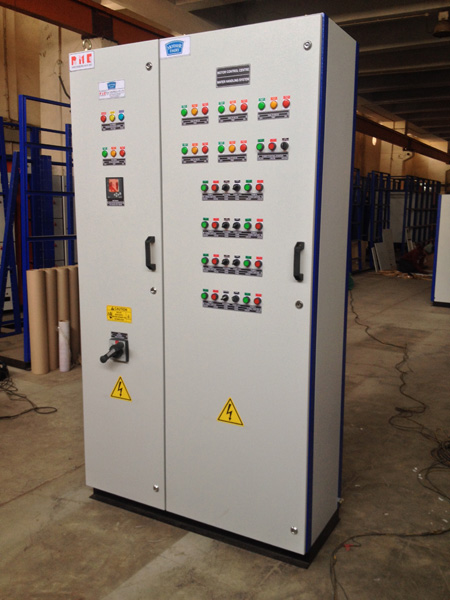

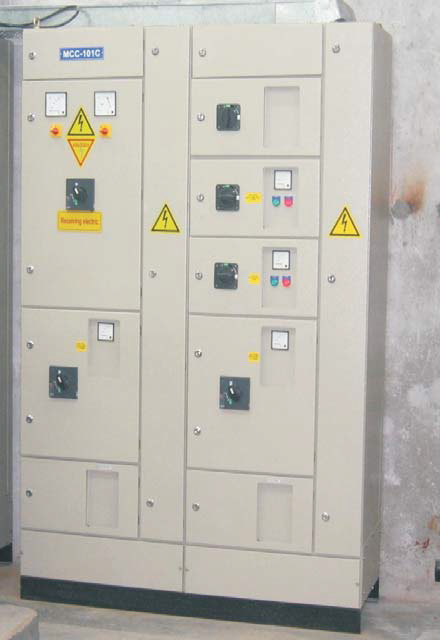

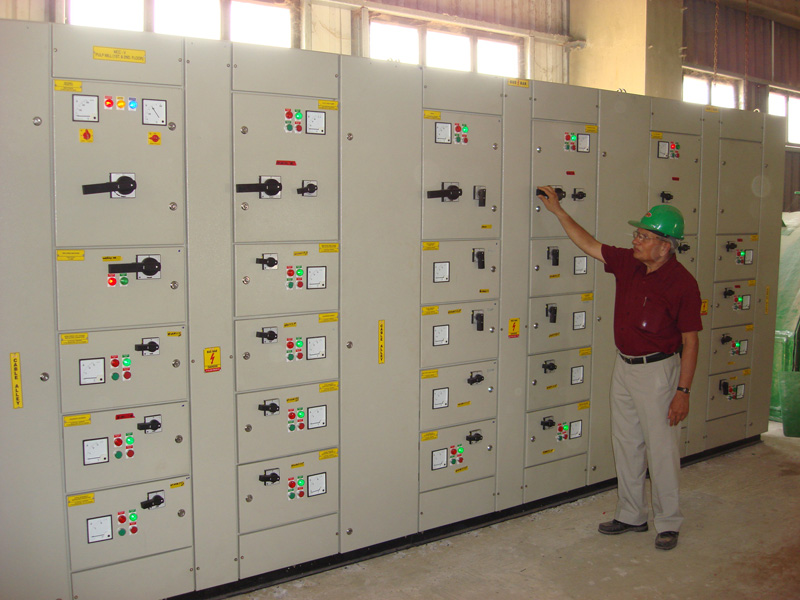

Motor Control Centres

Motor Control Center (MCC) are offered upto 4000A operational current at 40 degree Celsius ambient temperature in Single and Double Front Design for 70/100KA short circuit withstand capacity and IP: 54/55 degree of protection. Form IV of separation as per IS: 8623 is maintained.

Types of starters include:

  • Automatic Star Delta
  • Direct On-line
  • Soft Starters
  • Variable Frequency Drives
  • Stator Rotor Starters
  • Auto Transformer Starters

Specifications :

System System 3 Phase, 3 or 4 Wire, 50 Hz
Rated Current Upto 4000A
Rated Service Voltage Upto 690V
Rated Insulation Upto 1000V
Short Time Current 70/100 KA for 1 Sec, 220 KA Peak
Degree of Protection Upto IP54/55
Form of Separation Upto Form 3 Type - 2
(optional Form 4 Type - 3 , 4 , 5)
Type Tested For Short Time Current
Temperature Rise
Degree of Protection
Designed Ambient 45 degree C
Bus Bar System Interleaved above 3200A
Feeder Configuration Fully Drawout / Semi Drawout or Fixed Type
Busbar Copper or Aluminium
Application Operation, Control & Protection of
Distribution Network with or without
SCADA/BMS Connectivity
  • Suitable for Indoor & Outdoor Installations
  • Power Coated with Weather Proof Paints
  • Single & Double Door Construction
